Industrial solutions

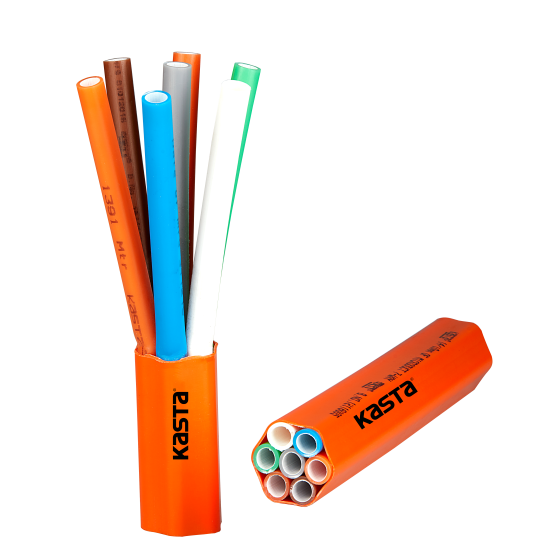

FIBER WAYS
FiBERWAYS is a next generation micro duct design for in-building and direct buried micro cable installations for
FTTH networks. Several micro ducts are jacketed together, creating dedicated multiple pathways for fiber optic
and fiber micro cable.
- Multi-duct configuration (1,2,4,5,7,12 FiBERWAYS) in sizes of 5/3.5 mm, 7/5.5 mm, 10/8 mm, 12/10 mm and
14/10mm
- It increases network capacities manifold, offering easy micro fiber installations capable of carrying high speed network traffic in small micro ducts
- FiBERWAYS can be installed at a low depth using micro trenching technology
- The strong outer sheathing provides additional impact protection during installation
- Ideal for air blown fiber installations; upgrade the network on the fly
- Extra ultra violet (UV) protection ensures a longer life span
- Anti-termite and anti-rodent protection
- Easy routing, branching and quick network provisioning. The mid-span access of micro ducts provides flexibility to provision fiber, especially for in-building riser and plenum duct installations
- Know the precise location through a GPS-based duct locating system
| Configurations | Outer diameter | Avg. wall thickness | Max OD of micro cable |
|---|---|---|---|
| 5/3.5 | 5(±0.5 ) mm | 0.75 (+0.0/0.1) mm | 1.5 mm |
| 7/5.5 | 7(±0.1) mm | 0.75 (+0.0/0.1) mm | 3.5 mm |
| 10/8 | 10(±0.1) mm | 1.0 (+0.0/0.1) mm | 5.5 mm |
| 12/10 | 12(±0.1) mm | 1.0 (+0.0/0.1) mm | 6.5 mm |
| 14/10 | 14(±0.1) mm | 2.0 (+0.0/0.1) mm | 7.00 mm |
| 14/12 | 14(±0.1) mm | 1.0 (+0.0/0.1) mm | 7.5 mm |
