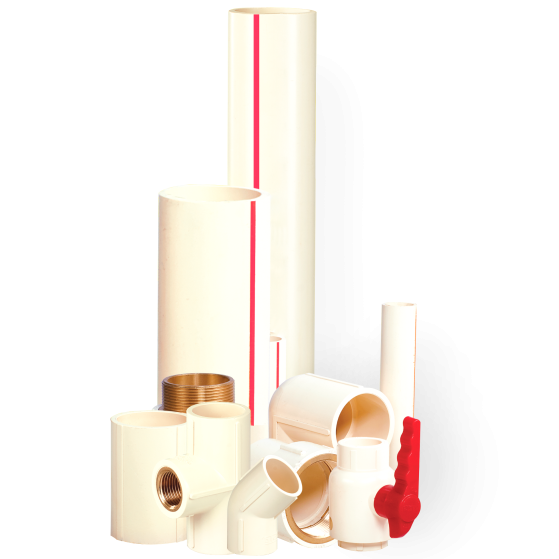

CPVC pipes and Fittings
BUILDING PRODUCTS
Kasta is a respected brand that provides products of consistent quality. Kasta CPVC pipes and fittings make commercial sense for buyers, facilitating hot and cold water distribution systems. The company’s experience addresses Indian and International standards in manufacturing a range of CPVC pipes and fittings. It uses high grade raw material, advanced technology and automated manufacturing equipment.
- Standard reference: IS 15778:2007 (Pipes) and ASTM D 2846 (Fittings)
Pipes
- Size : ½”-2” (SDR 11 and SDR 13.5)
Fittings
- Size: As per “ASTM D 2846”
- CPVC fittings: Coupler, Elbow, Tee, Reducer, MTA, FTA, Reducing tee, Reducing elbow, Bush, End cap, Union
and Tank nipple etc. - Brass fittings: MTA, FTA, Elbow brass, Tee brass, Elbow reducing brass and Wall mixer etc.
- Strong and durable; high tensile and impact strength
- Minimum bacterial growth
- Solvent Cement Joint; easy installation
- Leak-proof and corrosion-free
- Low thermal expansion and conductivity; self-insulating with low thermal conductivity
- Smooth inner bore-high flow rate and low bacterial growth
- Hygienic water supply
- Lead-free
- UV-resistant
- Cost-effective
- Rust-proof
- Free from bad odour, toxicity and taste
- Water distribution systems for homes, apartments, condominiums, hotels and high rises.
- Hot water service lines for domestic and commercial plumbing applications.
- Swimming pools
- Salt water lines
- Water distribution mains
- Aggressive/corrosive fluid transportation
- Dye plants, chrome, zinc Plating and tanning plants
- Sugar, paper and distillery industries
- Coal washing and ash handling
CPVC Pipe Conforming to IS: 15778: 2007
| Nominal Size | Nominal OD, mm | Mean OD, mm | Wall thickness, mm | |||||
|---|---|---|---|---|---|---|---|---|
| Max | Min | SDR 11 (Class-1) | SDR 13.5 (Class-2) | |||||
| mm | inch | Avg. Max | Min | Avg. Max | Min | |||
| 15 | 1/2 | 15.9 | 15.8 | 16 | 2.2 | 1.7 | 1.9 | 1.4 |
| 20 | 3/4 | 22.2 | 22.1 | 22.3 | 2.5 | 2 | 2.2 | 1.7 |
| 25 | 1 | 28.6 | 28.5 | 28.7 | 3.1 | 2.6 | 2.6 | 2.1 |
| 32 | 1 1/4 | 34.9 | 34.8 | 35 | 3.7 | 3.2 | 3.1 | 2.6 |
| 40 | 1 1/2 | 41.3 | 41.2 | 41.4 | 4.3 | 3.8 | 3.6 | 3.1 |
| 50 | 2 | 54 | 53.9 | 54.1 | 5.5 | 4.9 | 4.6 | 8 |
| Pressure Class | Working pressure for pipes (in Mpa) | ||
|---|---|---|---|
| SDR | 27°C | 82°C | |
| 1 | 11 | 2.76 | 0.68 |
| 2 | 13.5 | 2.18 | 0.55 |
| Temp | 27°C | 32°C | 38°C | 43°C | 49°C | 54°C | 60°C | 66°C | 71°C | 77°C | 82°C | 93°C |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SDR11 | 27.40 | 25.12 | 22.65 | 20.30 | 18.00 | 15.90 | 13.80 | 12.50 | 11.05 | 9.0 | 6.80 | 5.52 |
| SDR13.5 | 21.80 | 19.80 | 17.90 | 16.05 | 14.20 | 12.55 | 10.90 | 9.81 | 8.72 | 7.09 | 5.50 | 4.36 |

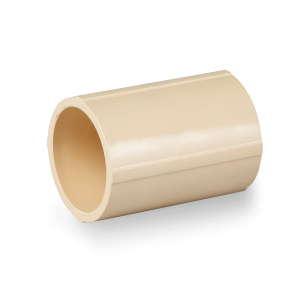

Coupler

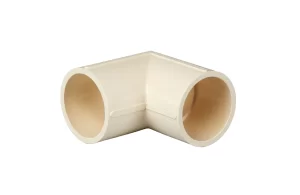

Elbow 90°
45° Elbow

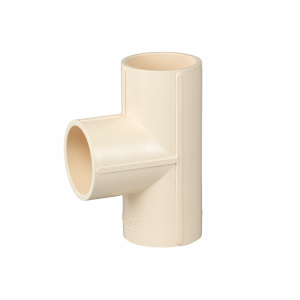

Equal Tee

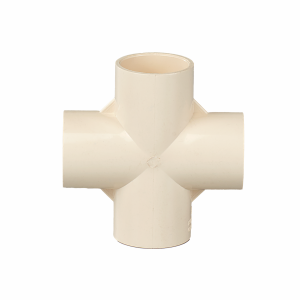

Cross Tee

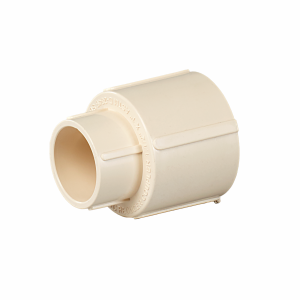

Reducer Coupler

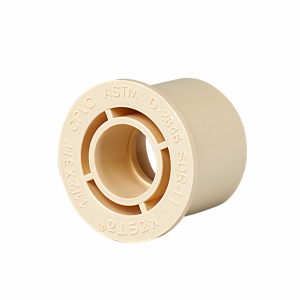

Reducing Bush

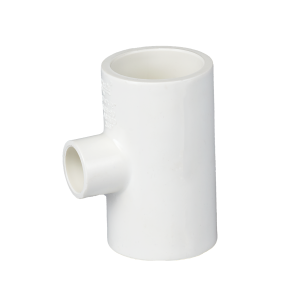

Reducing Tee

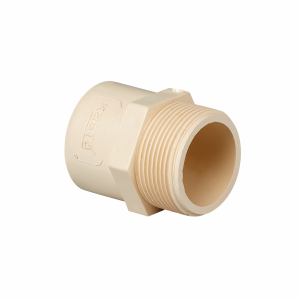

MTA Plastic

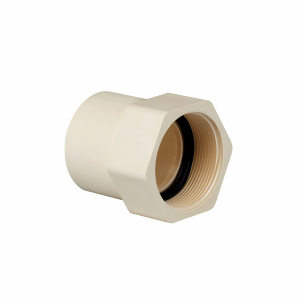

FTA Plastic

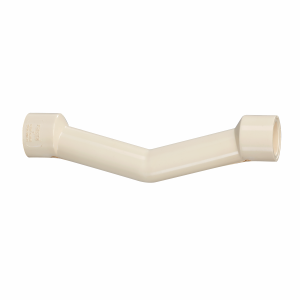

Step Over Band

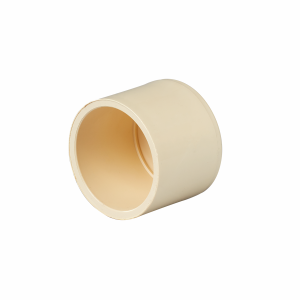

End Cap

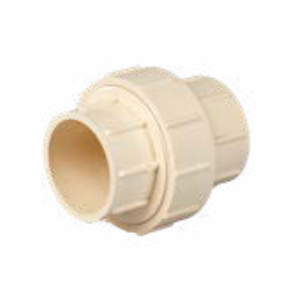

Union

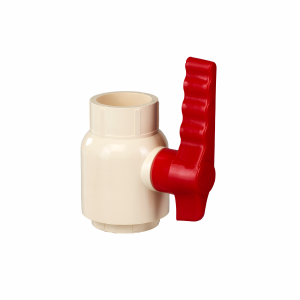

Ball Valve

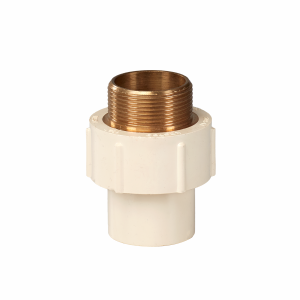

MTA Brass

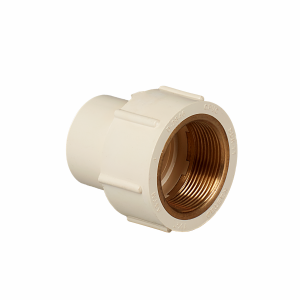

FTA Brass

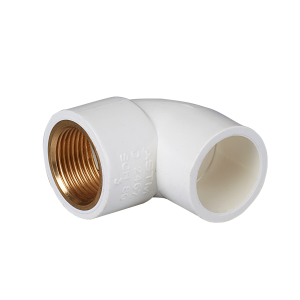

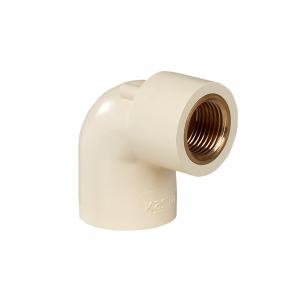

Elbow Brass

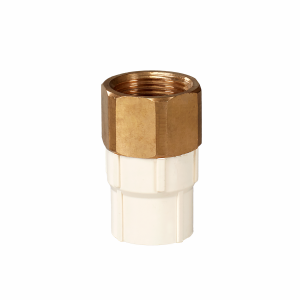

FTA Brass Hexa
Reducing Brass Elbow

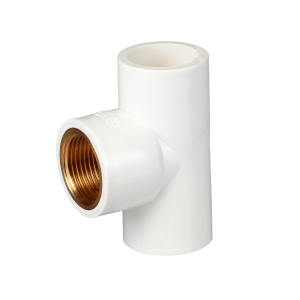

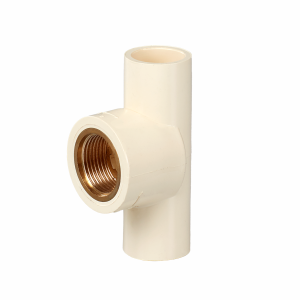

Tee Brass
Reducing Brass Tee

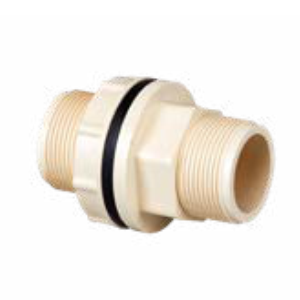

Tank Nipple

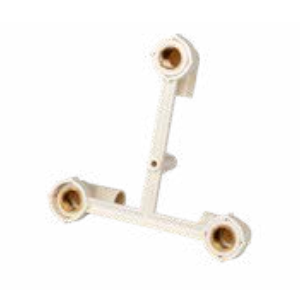

Wall Mixer
