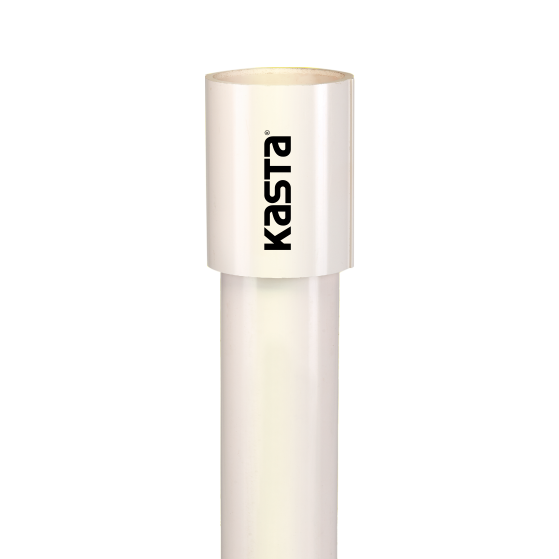

COLUMN PIPES
Agriculture
- Reference standard: Kriti’s proprietary high standard
- Product range: 25mm to 150mm (1”, 1.25”, 1.5”, 2”, 2.25”, 2.5”, 3”, 3.5”, 4”, 5” and 6”)
- Specially designed square threads ensure a proper grip and easy installation
- Long socket length
- Jointing with our special solvent cement reduces chances of coupler loosening and column slipping during
dismantling and also in the case of excessive tightening - ‘O’ and slot rings provide leak-proof fitting and absorbs pump vibrations, resulting in a long service life of the
motor and pump bearing - Replacement for GI pipes
- Long life and durable
- Increase in water discharge and lower electrical consumption due to a mirror finish
- No electrolyte deposition
- Water rising for submersible and jet pumps for agriculture, irrigation and domestic purposes
- Ideally used for clean and clear water applications
- Industrial wells and mines
| Name | 1″ | 1 1/4” | 1 1/2” | 2″ | 2 1/4” | 2 1/2” | 3″ | 3.5” | 4″ | 5″ | 6″ |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure kg/cm2 | |||||||||||
| V4-10kg | 10 | ||||||||||
| V4-12.5kg | 12.5 (B) | 12.5 (B) | 12.5 (B) | ||||||||
| V4-15kg | 15 (B) | 15 (B) | 15 (B) | ||||||||
| Eco- Medium | 8 | 8 | |||||||||
| Medium | 13 | 10 | 11 | 10 | 10 | ||||||
| Medium Plus | 17 | 17 | 17 | ||||||||
| Crystal | 21 (B) | 21 (B) | 21 (B) | 17 | |||||||
| Standard | 30 (B) | 25 (B) | 26 (B) | 20 | 16 | 17 | 15 | 16 | |||
| Standard Plus | 21 | 21 | 21 | 21 | |||||||
| Heavy | 35 (B) | 35 (B) | 27 | 26 | 26 | 26 | 26 | 26 | |||
| Heavy Plus | 30 | 30 | |||||||||
| Super Heavy | 40, 45 | 40 | 35 | 35, 40 | 35 | 35 | 35 | ||||
