Agriculture

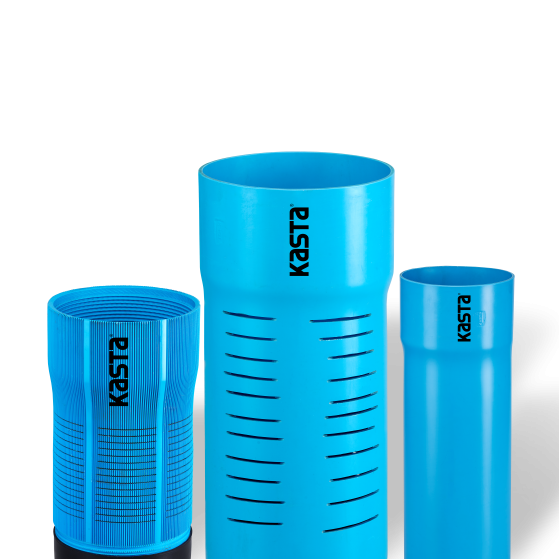

CASING PIPE

ring
  • Reference standard: IS 12818:2010
Type Installation depth Range, Dia.
CS (Shallow casing) Depth up to 80 meter 150mm, 175mm, 200mm and 250mm
CM (Medium casing) Depth up to 80 to 250 meter 100mm, 125mm, 150mm, 175mm, 200mm and 250mm
RMS (Medium well screen) 100mm, 125mm, 150mm, 175mm, 200mm and 250mm
Type Installation depth Range, Dia.
SDR – 47 (4 kg/cm2) Bore-well depth up to 60 feet (18 meter) 90mm, 110mm, 140mm, 160mm, 180mm, 200mm and 225mm
SDR – 36 (5 kg/cm2) Bore-well depth up to 80 feet (24 meter) 110mm, 140mm, 160mm and 180mm
SDR – 31 (6 kg/cm2) Bore-well depth up to 100 feet (30 meter) 110mm, 140mm, 160mm, 180mm, 200mm and 225mm
  • High load bearing capacity
  • Stripped edge prevents siltation
  • Ability to withstand external earth pressure
  • Unparalleled strength
  • Precisely cut equal length threads
  • Low weight
  • Non-clogging slots permit a high recharge
  • Suitable for all types of domestic, industrial and agricultural borewells
  • Recharge well
  • Rain water harvesting wells
