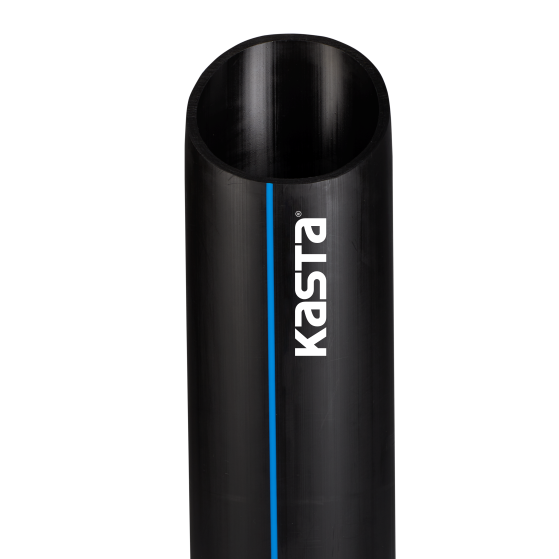

HDPE PIPE
- Reference standard: IS 4984:2016
- Material grade: PE-63, PE-80, PE-100
- Product range: 16mm, 20 mm, 25mm, 32mm, 40mm, 50mm, 63mm, 75mm, 90mm, 110mm, 125mm, 140mm,
160mm, 180mm, 200mm, 225mm, 250mm, 280mm, 315mm, 355mm, 400mm, 450mm, 500mm, 560mm,
630mm and 710 mm - Pressure rating: PN2, PN2.5, PN3.2, PN4, PN5, PN6, PN8, PN10, PN16 and PN20
- Manufactured from virgin raw material
- Resistant to sunlight/UV resistant
- Durable
- Elastic in nature; requires fewer fittings
- Smooth inner surface with a high flow rate
- Replacement for metal pipes
- Agriculture – Lift and gravity irrigation
- Delivery pipe for submersible pumps
- Potable water supply
- Industrial applications
- Acidic/Slurry water supply
- Superior corrosion and chemical resistance
| Dimensions as per IS 4984:2016 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SDR | SDR-41 | SDR-33 | SDR-26 | SDR-21 | SDR-17 | SDR-13.6 | SDR-11 | SDR-9 | SDR-7.4 | SDR-6 |
| PE-63 | PN-2 | PN-2.5 | PN-3.2 | PN-4 | PN-5 | PN-6 | PN-8 | |||
| PE-80 | PN-2.5 | PN-3.2 | PN-4 | PN-5 | PN-6 | PN-8 | PN-10 | PN-12.5 | PN-16 | PN-20 |
| PE-100 | PN-3 | PN-4 | PN-5 | PN-6 | PN-8 | PN-10 | PN-12.5 | PN-16 | PN-20 | |
| Wall thickness | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Dia. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. |
| 16 | 1.8 | 2.1 | 2.2 | 2.5 | 2.7 | 3.1 | ||||||||||||||
| 20 | 1.9 | 2.2 | 2.3 | 2.6 | 2.7 | 3.1 | 3.4 | 3.8 | ||||||||||||
| 25 | 1.9 | 2.2 | 2.3 | 2.6 | 2.8 | 3.2 | 3.4 | 3.8 | 4.2 | 4.7 | ||||||||||
| 32 | 1.9 | 2.2 | 2.4 | 2.7 | 2.9 | 3.3 | 3.6 | 4.1 | 4.4 | 4.9 | 5.4 | 6 | ||||||||
| 40 | 1.9 | 2.2 | 2.4 | 2.7 | 3 | 3.4 | 3.7 | 4.2 | 4.5 | 5.1 | 5.4 | 6 | 6.7 | 7.5 | ||||||
| 50 | 2 | 2.3 | 2.4 | 2.7 | 3 | 3.4 | 3.7 | 4.2 | 4.6 | 5.2 | 5.6 | 6.3 | 6.8 | 7.6 | 8.4 | 9.3 | ||||
| 63 | 2.5 | 2.4 | 2.9 | 3 | 3.4 | 3.7 | 4.2 | 4.7 | 5.3 | 5.8 | 6.5 | 7 | 7.8 | 8.6 | 9.6 | 10.5 | 11.7 | |||
| 75 | 1.9 | 2.2 | 2.3 | 2.6 | 2.9 | 3.3 | 3.6 | 4.1 | 4.5 | 5.1 | 5.6 | 6.3 | 6.9 | 7.7 | 8.4 | 9.3 | 10.2 | 11.3 | 12.5 | 13.9 |
| 90 | 2.2 | 2.5 | 2.8 | 3.2 | 3.5 | 4 | 4.3 | 4.8 | 5.3 | 5.9 | 6.7 | 7.5 | 8.2 | 9.1 | 10 | 11.1 | 12.2 | 13.5 | 15 | 16.6 |
| 110 | 2.7 | 3.1 | 3.4 | 3.8 | 4.3 | 4.8 | 5.9 | 6.6 | 6.5 | 7.3 | 8.1 | 9 | 10 | 11.1 | 12.3 | 13.6 | 14.9 | 16.5 | 18.4 | 20.3 |
| 125 | 3.1 | 3.5 | 3.8 | 4.3 | 4.8 | 5.4 | 6 | 6.7 | 7.4 | 8.2 | 9.2 | 10.2 | 11.4 | 12.7 | 13.9 | 15.4 | 16.9 | 18.7 | 20.9 | 23.1 |
| 140 | 3.5 | 4 | 4.3 | 4.8 | 5.4 | 6 | 6.7 | 7.5 | 8.3 | 9.2 | 10.3 | 11.4 | 12.8 | 14.2 | 15.6 | 17.3 | 19 | 21 | 23.4 | 25.8 |
| 160 | 3.9 | 4.4 | 4.9 | 5.5 | 6.2 | 6.9 | 7.7 | 8.6 | 9.5 | 10.6 | 11.8 | 13.1 | 14.6 | 16.2 | 17.8 | 19.7 | 21.7 | 24 | 26.7 | 29.5 |
| 180 | 4.4 | 4 | 5.5 | 6.2 | 7 | 7.8 | 8.6 | 9.6 | 10.6 | 11.8 | 13.3 | 14.7 | 16.4 | 18.1 | 20 | 22.1 | 24.4 | 26.9 | 30 | 33.1 |
| 200 | 4.9 | 5.5 | 6.1 | 6.8 | 7.7 | 8.6 | 9.6 | 10.7 | 11.8 | 13.1 | 14.7 | 16.3 | 18.2 | 20.1 | 22.3 | 24.6 | 27.1 | 29.9 | 33.4 | 36.8 |
| 225 | 5.5 | 6.2 | 6.9 | 7.7 | 8.7 | 9.7 | 10.8 | 12 | 13.3 | 14.7 | 16.6 | 18.4 | 20.5 | 22.7 | 25 | 27.6 | 30.5 | 33.7 | 37.5 | 41.4 |
| 250 | 6.1 | 6.8 | 7.6 | 8.5 | 9.7 | 10.8 | 12 | 13.3 | 14.7 | 16.3 | 18.4 | 20.3 | 22.8 | 25.2 | 27.8 | 30.7 | 33.8 | 37.3 | 41.7 | 46 |
| 280 | 6.9 | 7.7 | 8.5 | 9.5 | 10.8 | 12 | 13.4 | 14.8 | 16.5 | 18.3 | 20.6 | 22.8 | 25.5 | 28.2 | 31.2 | 34.4 | 37.9 | 41.8 | 46.7 | 51.5 |
| 315 | 7.7 | 8.6 | 9.6 | 10.7 | 12.2 | 13.5 | 15 | 16.6 | 18.6 | 20.6 | 23.2 | 25.6 | 28.7 | 31.7 | 35 | 38.6 | 42.6 | 47 | 52.5 | 57.9 |
| 355 | 8.7 | 9.7 | 10.8 | 12 | 13.7 | 15.2 | 16.9 | 18.7 | 20.9 | 23.1 | 26.1 | 28.8 | 32.3 | 35.6 | 39.5 | 43.6 | 48 | 52.9 | 59.2 | 65.2 |
| 400 | 9.8 | 10.9 | 12.2 | 13.5 | 15.4 | 17 | 19.1 | 21.1 | 23.6 | 26.1 | 29.5 | 32.6 | 36.4 | 40.1 | 44.5 | 49.1 | 54.1 | 59.6 | 66.7 | 73.5 |
| 450 | 11 | 12.2 | 13.7 | 15.2 | 17.3 | 19.1 | 21.5 | 23.8 | 26.5 | 29.3 | 33.1 | 36.5 | 40.9 | 45.1 | 50 | 55.1 | 60.9 | 67.1 | 75 | 82.6 |
| 500 | 12.2 | 13.5 | 15.2 | 16.8 | 19.3 | 21.3 | 23.9 | 26.4 | 29.5 | 32.6 | 36.8 | 40.6 | 45.5 | 50.2 | 55.6 | 61.3 | 67.6 | 74.5 | 83.4 | 91.8 |
| 560 | 13.7 | 15.2 | 17 | 18.8 | 21.6 | 23.9 | 26.7 | 29.5 | 33 | 36.4 | 41.2 | 45.4 | 50.9 | 56.1 | 62.3 | 68.6 | 75.7 | 83.4 | 93.4 | 102.8 |
| 630 | 15.4 | 17 | 19.1 | 21.1 | 24.3 | 26.8 | 30 | 33.1 | 37.1 | 40.9 | 46.4 | 51.1 | 57.3 | 63.1 | 70 | 77.1 | 85.2 | 93.8 | 105 | 115.6 |
| 710 | 17.3 | 19.1 | 21.5 | 23.9 | 27.3 | 30.1 | 33.9 | 37.4 | 41.8 | 46.1 | 52.2 | 57.5 | 64.6 | 71.2 | 78.9 | 86.9 | 96 | 105.7 | 118.4 | 130.3 |
